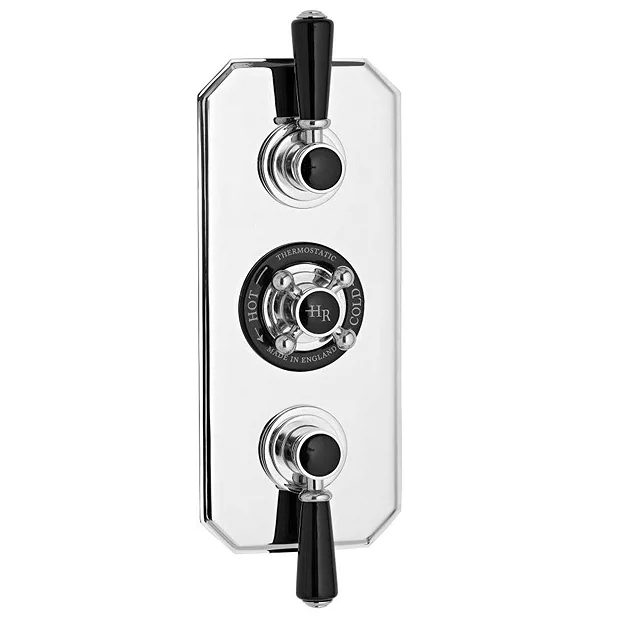

Hudson Reed Topaz Black Triple Concealed Thermostatic Shower Valve

Hudson Reed Topaz Black Triple Concealed Thermostatic Shower Valve – BTSVT003

The Topaz black triple thermostatic shower valve is robust and graceful with the precision of modern day design. Its distinct ceramic control dial brings substantial elegance to the modern bathroom. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Operates two shower accessories separately or simultaneously.

Product Details

• Brand: Hudson Reed
• Product Code: BTSVT003
• Finish: Chrome + Black
• Material: High quality brass & ABS
• Height: 280mm
• Width: 120mm
• Depth: 86mm
• Thermostatic
• Anti-scald
• High Quality Design
• TMV2 & TMV3 Approved
• WRAS Approved
• Made in Britain
• Patented cartridge is highly resistant to calcium build up
• Thermostatic control to +/- 1 degree – even if the water pressure fluctuates

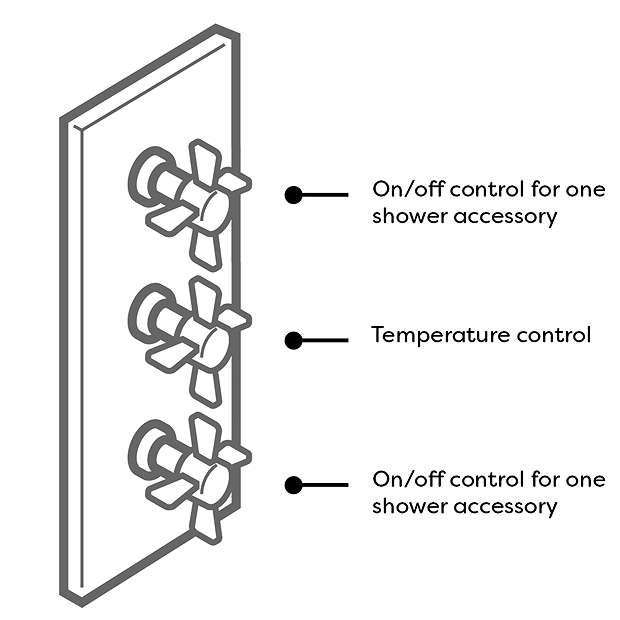

• Designed to work with two outlets separately or simultaneously
• Mount Type: Recessed/Wall
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Centres: 90mm
• Minimum Water Pressure of LP1 (0.1 bar)


20 Year guarantee

Flow Rates

0.1 Bar – 5.5 l/m
0.5 Bar – 13 l/m
1 Bar – 20 l/m
2 Bar – 29 l/m
3 Bar – 44 l/m
